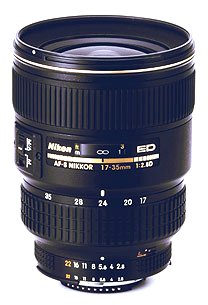

afs 17-35.jpg (16159 bytes)AF-S Zoom-Nikkor 17-35mm f/2.8D IF-ED

Fast, ultra-wideangle zoom lens with Nikon's exclusive Silent Wave Motor

Nikon is proud to add a new lens to its AF-S Nikkor lineup, the AF-S Zoom-Nikkor 17-35mm f/2.8D IF-ED. Ideal for photojournalism and general photographic applications, this new ultra-wideangle zoom lens offers high optical performance and the shortest closest-focusing distance in its class - 0.28m (0.9 ft.) throughout the entire zoom range.   The lens is also fast, and features a constant maximum aperture of f/2.8 at all focal lengths.

A key feature of this new lens is Nikon's exclusive built-in Silent Wave Motor, which ensures ultra-fast, ultra-quiet autofocus operation. Optical performance is also superior thanks to the inclusion of ED (Extra-low Dispersion glass and aspherical lens elements in a new optical design.

While the lens is designed for maximum autofocus performance with the Nikon F5, F4, F100, F90x, F90, F70, Pronea 600i, Pronea S, Nikon Digital Camera E2/E3 series and D1, it can also be focused manually with other Nikon SLR models.  The advanced M/A mode lets you switch quickly from automatic to manual focusing, even during AF servo operation, with virtually no time lag. Plus, the lens consumes no power for manual focusing operation.

Major Features

  • Nikon's exclusive Silent Wave Motor enables swift autofocusing with exceptional accuracy and powerful, super-quiet operation.
  • Newly designed optical system ensures superior optical performance.
  • Features two types of aspherical lens - two moulded-glass and one hybrid - to minimise distortion at the periphery.
  • Constant maximum aperture of f/2.8 at all focal lengths.
  • Two ED (Extra-low Dispersion) glasses minimise chromatic aberration and provide higher resolution and superior contrast.
  • High-performance Nikon Super Integrated Coating enables superior colour reproduction, while minimising ghost and flare.
  • Rounded diaphragm opening (9 blades) makes out of focus elements appear more natural.
  • 0.28m (0.9 ft) closest focusing distance throughout the full zoom range.
  • IF (Internal Focusing) ensures fast AF operation and a closer focusing distance.
  • M/A mode enables instant switching from autofocus to manual focus, even during AF servo operation, with virtually no time lag.
  • New easy-to-use design with simulated leather finish for superior grip.
  • Easy, smooth manual focusing operation.
  • No power required for manual focusing operation.
  • Filter attachment does not rotate during focusing and zooming.
  • Dedicated lens hood effectively minimises stray light.
  • Dust and water drop-resistant design.
AF-S Zoom-Nikkor 17-35mm f/2.8D IF-ED - Specifications
Focal Length 17mm to 35mm
Maximum aperture f/2.8
Lens construction 13 elements in 10 groups
Picture angle 104?62?br> (79?44? with Nikon Professional Digital SLR D1)
Focus distance 0.28m (0.9 ft.) to infinity
Max. reproduction ratio 1/4.6
Focal length scale 17mm, 20mm, 24mm, 28mm, 35mm
Aperture scale f/2.8 to f/22
Attachment size 77mm
Supplied Lens Hood HB-23
Dimensions Approx. 82.5mm x 106mm (3.2 x 4.2 inch)
Weight Approx. 745g (26.3 oz.)
* Equivalent to approx. 25.5-52.5mm focal length in 35mm (135) film format.
